Rs.20,820.00 – Rs.32,120.00 18% GST Inclusive

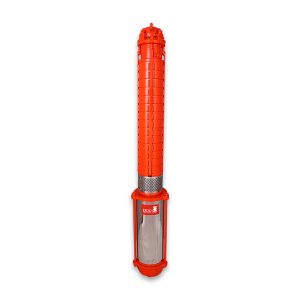

Mini Submersible borehole pumps for 6″ (150mm) deep wells with various type of impellers gives superior durability with best in class performance. Closely coupled mini submersible pumps are designed in such a way that it can be used in Open-well operations as well with better efficiency.
| PHASE | HP | kW | MIN HEAD (M) | MAX HEAD (M) | DISCHARGE (LPM) | OUTLET |
|---|---|---|---|---|---|---|
| SINGLE | 1.0 | 0.75 | 15 | 38 | 120-40 | 1.5" |
| SINGLE | 1.5 | 1.1 | 20 | 48 | 140-40 | 1.5" |
| SINGLE | 2.0 | 1.5 | 28 | 77 | 120-40 | 1.5" |
• Mono rotor shaft up to a particular stages.
• Easy to dismantle, rewind and install.
• Complete SS 304 motor body.
• Rotor made of 99.9 % EC grade Copper.
Application
• Agriculture
• Domestic Building Services
• Commercial Building Services
• Public Utilities
Options : Special Winding designs for low and high voltage operations. Available for Single & Three phase power systems. Available with installation accessories.
[visualizer id=”165″]
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| HP | 1.0, 1.5, 2.0 |
