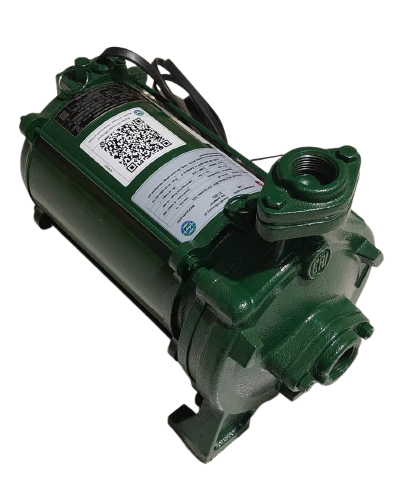

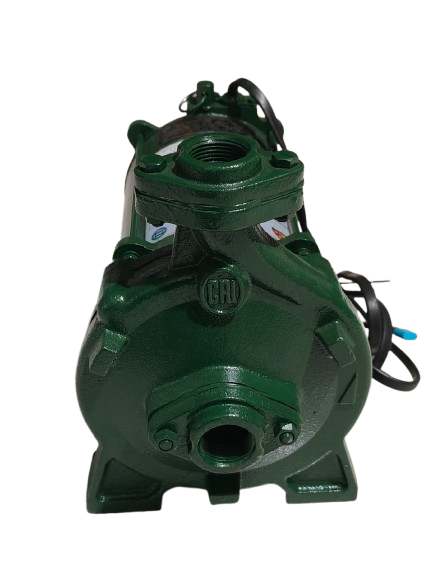

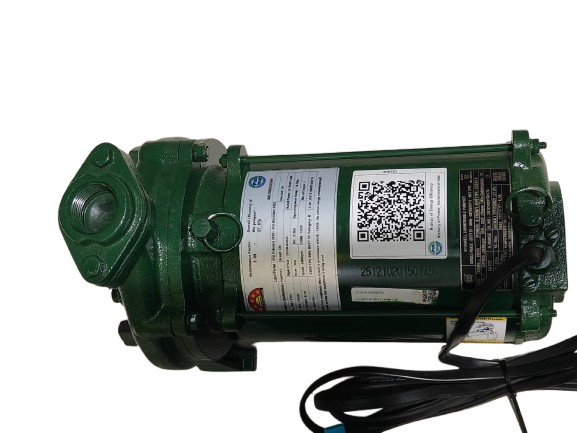

The CRI CSS-3H is a 1 HP single-phase horizontal openwell submersible pump manufactured by C.R.I. Pumps. It is commonly used for domestic, agricultural, and garden water supply applications.
Key Specifications of the CRI CSS-3H
The CSS-3H is known for its robust construction and high operating efficiency, designed to work submerged in open wells or tanks.
| Feature | Specification | Source |
|---|---|---|
| Power | 1 HP (0.75 kW) | |
| Phase | Single Phase | |
| Voltage | 220 – 240 V | |
| Head Range | 14 – 33 meters (approx. 46 – 108 feet) | |
| Discharge Range | 0 – 3 Liters per second (LPS) or 0 – 10800 LPH | |
| Outlet Size | 25 mm (1 inch) | |
| Motor Speed | 2880 RPM | |
| Motor Body | Mild Steel | |
| Impeller Material | Noryl & Cast Iron (CED Coated) |
Main Features
- No Suction or Priming Problems: The submersible design means the pump operates underwater, eliminating the need for manual priming.
- Durable Construction: The motor is sealed with high-quality polymers, O-rings, oil seals, and a sand guard to prevent water ingress.
- Efficient Operation: Dynamically balanced rotating parts ensure vibration-free, noiseless operation and high efficiency.
- Safety: Features a pressure-equalizing rubber diaphragm and thermal overload protection to guard against pressure variations and overheating.
- Easy Maintenance: The design allows for easy dismantling and repair.
